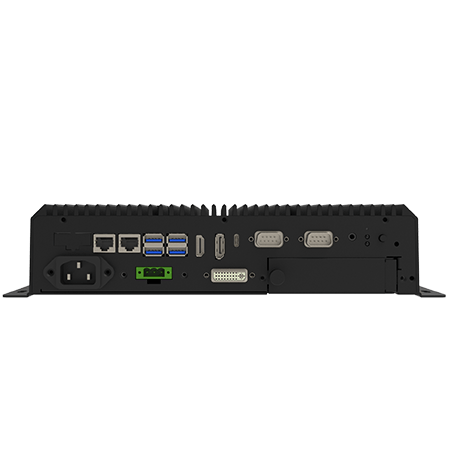

- Marine Computer with Intel® Core Ultra 5
- New Design — rugged marine computing solution for shipboard control, navigation and monitoring applications
- Intel® Core Ultra 5 125U
- Removable 2.5" SSD drive bay
- Multi Video Output, DVI/HDMI/Display Port
- Isolation Power Protection 1.5KV
- 4 x Digital Input / 4 x Digital Output
- 8 x NMEA Port 0183
- CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 certified
System Specification
| Processor | Intel Core Ultra 125U 2.1GHz (up to 4.3GHz) |
|---|---|
| Memory | 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Connection I226-X2 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) |
Environment
| Operating Humidity | 5% to 95% |
|---|---|
| Operating Temperature | -15~55°C |
| Shock | 15G, 11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
Certification
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
|---|
IO Ports
| USB Port | 4 x USB 3.0 (Type-A) 1 x USB 3.0 (Type-C) |
|---|---|
| Serial Port | 2 x RS232/422/485 |
| LAN | 2 x Giga LAN |
| Video | 1 x DVI 1 x Display Port (Default) 1 x HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack |
| Expansion Port | 2 x 2.5" Removable SSD/HDD (Optional) |
| DIDO | 8 x Isolated DIDO, 4 In/ 4out |
| NMEA | 8 x NMEA 0183 Port |
Mechanical
| Dimension | 316.44 x 206.8 x 66.1 mm, (With Mounting) |
|---|---|
| Weight | 3.9 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Power
| Power Rating | 24V DC In (Approval by Certificate) 9~36V DC Input Acceptable, (Optional) 115/230 VAC Input Acceptable |
|---|---|
| Consumption | 50W |
Control
| Button | 1 x Power Button 1 x Reset Button |
|---|
Accessory
| Accessory | 1 x Quick Start Guide 1 x Power Cord 1 x Open Wire Cable 1 x AC Adapter12V/ 84W |
|---|
