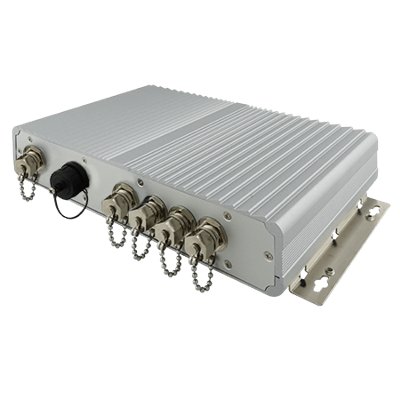

Full IP65 Rugged Embedded PC with M12 Connector, Intel® Core™ i5-1135G7
Vlastnosti:
- Full IP65 rugged embedded pc, aluminum profile with fin
- Ultra compact size with fanless design, box PC with M12 connector
- Support M.2 SSD
- One M.2 socket expansion
- 9~36V DC with isolation
- 11th Generation (Tiger Lake) Intel® Core™ i5-1135G7 Processor
- M12 waterproof connector
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 260.4 x 193 x 50.1 mm(w/o desk mount bracket) 275.4 x 193 x 56.1 mm(w/i desk mount bracket) |
| Weight | 3.0 kg |
| Mounting | Desk Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | 15G, 11ms duration |
| Vibration | 5Hz~500Hz / 1Grms / 3 axis |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 1 x Waterproof USB Type-A Connector with cover |
| Serial Port | 1 x M12 waterproof connector for RS232 2 x M12 waterproof connector for RS232 (Optional) |
| Video | 1x M21 type connector for HDMI output |
| Expansion Port | 1 x M.2 2280/2242 M-Key Slot (for NVME SSD or SATA III SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| LAN | 2 x M12 type connector for Giga LAN |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage 2 x LED Indicator for LAN |
| DIDO | 1x M12 type connector for Digital 4 in/ 4 out (Optional) |
Control
| Button | 1 x Power Button with LED Indicator |
Accessory
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External HDMI cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter |
| Optional Accessory | 100~240V AC to DC Adapter with waterproof connector (Optional) Power Cord (Optional) |
