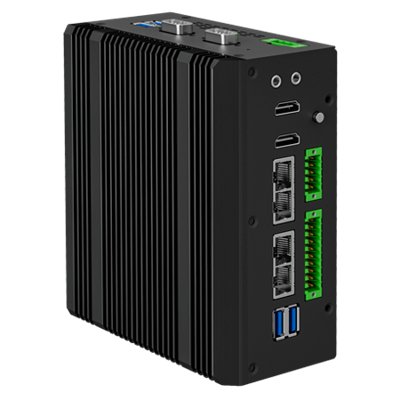

AI DIN Rail Box PC with IntelR Core i5-1335U
Vlastnosti:
- Intel® Raptor Lake Core™ i5-1335U 3.3GHz (up to 4.40 GHz)
- 1 x SO-DIMM DDR5 Memory, up to 32GB
- 4 x 2.5 Giga LAN, 4 x RS232/422/485
- 2 x USB 3.2 Gen 2×1, 1 x USB3.2 Gen1x1, 1 x USB2.0
- Isolated DIO (8-in/8-out)
- Wide Range 9V to 36V DC Power Input with Isolation
- Wide Operating Temperature range from -20°C to +60°C
- DIN-Rail type Edge Computing
System Specification
| Processor | Intel® Core™ i5-1335U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) |
| Ethernet controller | 4 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi or Hailo8 AI Accelerator) 1 x M.2 2280 M-key Slot (for NVMe SSD) 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS(When using this feature, WLAN will not be supported) (Optional) |
Mechanical
| Dimension | 130 x 68 x 150 mm |
| Weight | 1.5 kg |

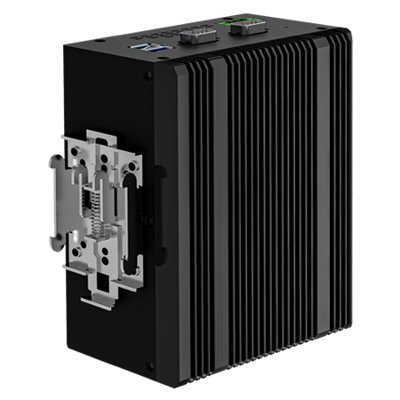

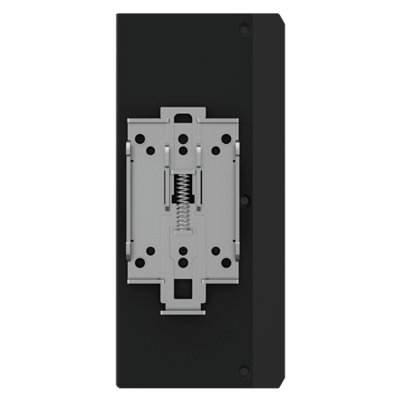

| Mounting | Din-Rail mount Mini Din-Rail Mount (Optional) Wall Mount (Optional) |
| Enclosure | Aluminum and Metal Housing |
| Cooling System | Fan Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
Certification
| Certification | CE, FCC |

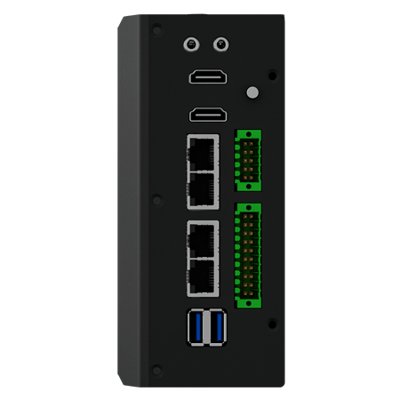

IO Ports
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen2x1 (10Gbps, Type A) 1 x USB3.2 Gen1x1 (5Gbps,Type A) 1 x USB2.0 (Type A) |

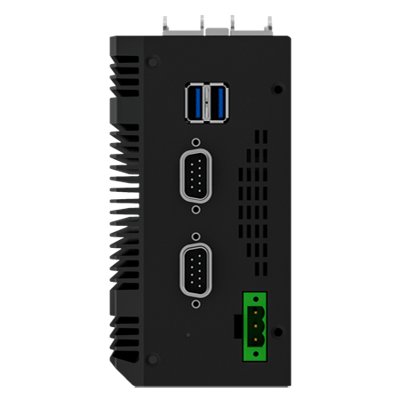

| Serial Port | 2 x Isolated RS-232/422/485 (1 x 10 Pin terminal block, select thru jumper) (Default RS232) 2 x Isolated RS-232/422/485 (2 x DB9, select thru BIOS) (Default RS232) |
| SIM Card Slot | 1 x nano SIM Card slot (Optional) |
| Video | 2 x HDMI 2.0b , Max resolution up to 4096×2160@60Hz (Optional) |
| Audio | Mic in Line out |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi or Hailo8 AI Accelerator) 1 x M.2 2280 M-key Slot (for NVMe SSD) 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| LAN | 4 x 2.5 Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power |
| DIDO | 1 x Isolated 8in/8out DIO with 20-Pin Terminal block ： 8 x Digital input channels with 2500 VDC isolation protection – Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC – Dry contact: Logic 0: Shorted to GND/ Logic 1: Open 8 x Digital output channels – Output voltage: 5 ~ 30 VDC – Output capability sink: 500 mA ax./channel |
Control
| Button | 1 x Power Button with LED Indicator |
Accessory
| Accessory | 1 x 100~240V AC to DC Adapter 1 x Power Cord 1 x Terminal Block 20-pin connector for DIDO 1 x Terminal Block 3-pin connector for Power 1 x Terminal Block 10-pin connector for COM 1 x Open Wire Cable 1 x Terminal Block 3-pin to 2.5Ø Female Adapter Cable 1 x Din Rail Mount kits |
| Optional Accessory | 1 x Mini Din Rail Mount kits (Optional) 1 x Wall Mount kits (Optional) |
Power
| Power Rating | 9V to 36V DC with isolation, 3-Pin Terminal Block |
| Adapter | 12V 120W |
