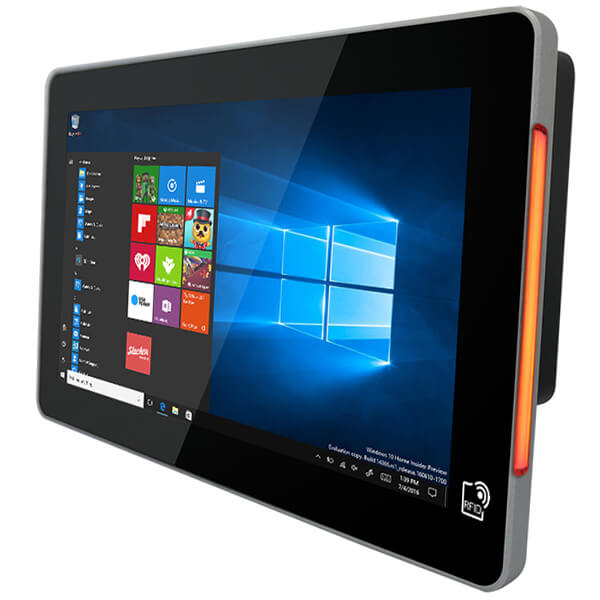

PCH2AC-POE-10.1 S-Series HMI with LED light bar and RFID for access control applications, building automation-03_1339
Features
10.1″ 1280 x 800 Resolution with Projected Capacitive Multi-Touch (P-CAP)
Low-power system with Intel® Celeron® N2930 processor
PoE standard IEEE 802.3at (25 W)
Fanless cooling system and ultra-low power consumption
Dual Gigabit Ethernet
Room booking schedule, access control, room information display
Front IP65 water and dust proof
Built-in RGB LED Status Light Bar, on both sides
Optional HF RFID Reader
Default PoE Function
Optional 2MP Front Camera
LCD PaneláSpecification
| Size |
10.1″ TFT (Widescreen) |
| ActiveáDisplayáArea |
220.416(H) x 129.15(V) |
| PixeláPitch |
0.21525(H) x 0.21525(V) |
| Resolution |
1280×800 |
| Contrast Ratio |
800:1 |
| DisplayáColor |
16.7M |
| Panel Brightness |
350(typ.) |
| Viewing Angle |
-85~85(H);-85~85(V) |
| Touch Screen |
Projected Capacitive Multi-Touch (P-CAP)
Optional anti-glare |
SystemáSpecification
| Processor |
Intel® Celeron® Bay Trail-M N2930 1.83GHz |
| Chipset |
Intel® ATOM SoC Integrated |
| Memory |
1 x SODIMM DDR3L 1600 MHz (Default 2GB, Max 8GB) |
| BIOS |
AMI 64Mbit Flash |
| Ethernet |
Intel® I210-AT GbE |
| Storage |
1 x M.2 SSD (Default 64GB) |
I/O Connectors
| Digital IO |
1 x DIDO (Optional) |
| DC-Input |
1 x DC Terminal Block 3-pin (Phoenix Type) |
| USB Port |
1 x USB 3.0, 1 x USB 2.0 |
| Ethernet |
1 x RJ45 – 10/100/1000 Mbps (LAN)
1 x RJ45 – 10/100/1000 Mbps (LAN/ PoE) |
| COM Port |
1 x RS232/422/485 |
| Speaker |
1 x 1 Watt Speaker |
Mechanical and Environment
| Operating Temperature |
0C to +50C |
| Operating Humidity |
30% to 90% (non-condensing) |
| Cooling System |
Fanless design |
| Dimension (W x H x D) |
263.28 x 171 x 35.7 (mm) |
| Mouting |
VESA Mount(75x75mm), Panel Mount, Front Side Wall Mount |
Product Spec
| OS |
Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded Standard 7 |
Peripheral
| RFID(HF, 13.56MHz) |
HF RFID Reader 13.56 MHz (Optional) |
| LED Light Bar Indicator |
Built-in RGB LED Status Light Bar, on both sides |
| Camera |
2MP Front Camera (Optional) |
Power
| Power Input |
12V DC Terminal Block (Phoenix Type) |
| Power Consumption |
19W |
| Power over Ethernet |
Power Device (PD): follows IEEE 802.3at (25 W) |
