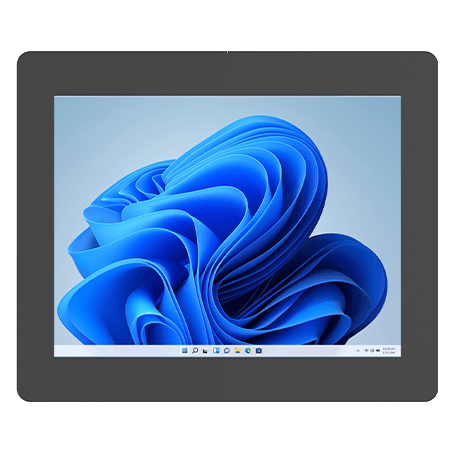

- 12.1" Wide Temperature Chassis Panel PC with Intel® Processor N150
- New Design — industrial panel PC for machine control, automation and reliable data visualization
- 12.1" display with 1024 x 768 resolution and 500.0 nits brightness
- 12.1-inch XGA TFT LCD
- Intel® Alder Lake-N N150 Processor
- 1 x SO-DIMM, max. 16GB
- 2 x 2.5 Gigabit Ethernet
- Supports 1 x HDMI, 1 x USB 3.2 Type-C with DP-Alt, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0, 4 x COM
- Wide Temperature Chassis Panel PC

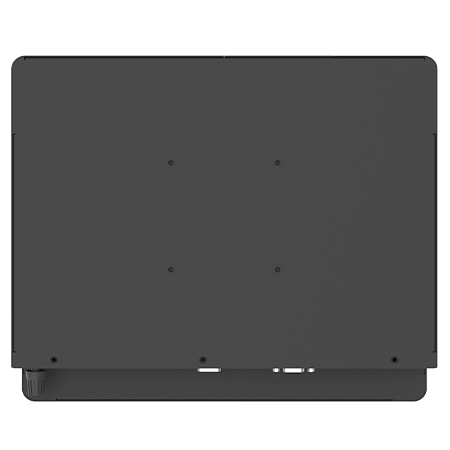

- Supports VESA Mount
- CE, FCC certified
Display
| Size | 12.1 inches |
|---|---|
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
| Resolution | 1024 x 768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89, 89, 89, 89 |
| Active Area | 245.76 x 184.32 mm |
System Specification
| Processor | Intel® Processor N100 6M Cache, up to 3.40 GHz |
|---|---|
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB (Default) 16GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Only available when NVME SSD is not present) (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 303 x 217 x 60 mm |
|---|---|
| Weight | 3.5 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 30% to 90% RH, Non-Condensing |
|---|---|
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 65°C |
Certification
| Certification | CE, FCC |
|---|
IO Ports
| USB Port | 2 x USB 3.2 Gen1x1 (Type-A) 1 x USB 3.2 Gen 2×1 Type C connector,support DP Alt. mode |
|---|---|
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVMEI SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, 2.5? DC jack |
Control
| Button | 1 x Power Button 1 x Reset Button |
|---|
Accessory
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
|---|
Power
| Power Rating | 12V DC |
|---|---|
| Adapter | 12V 50W |
