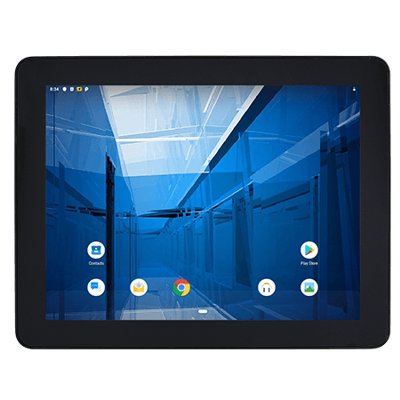

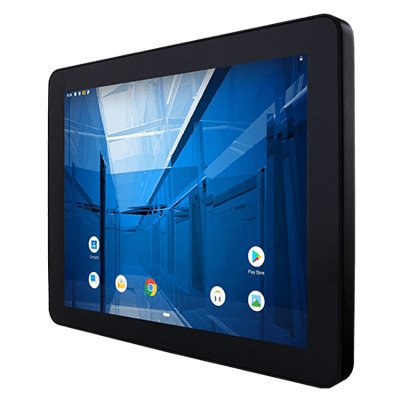

10.4" Qualcomm Snapdragon™ 660 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 1 x USB 3.0 OTG, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional);
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 9.0 |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024×768 |
| Size | 10.4 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350 1000 (Optional) |
| View Angles | 88,88,88,88 |
| Active Area | 210.4×157.8 mm |
IO Ports
| USB Port | 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD Card Slot |
| Video | 1 x Micro HDMI (Optional) |
| LAN | 1 x LAN |
Certification
| Certification | CE, FCC |
Power
| Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
| Adapter | 12V 50W |
Mechanical
| Dimension | 252.41 x 197.8 x 36.4.4 mm |

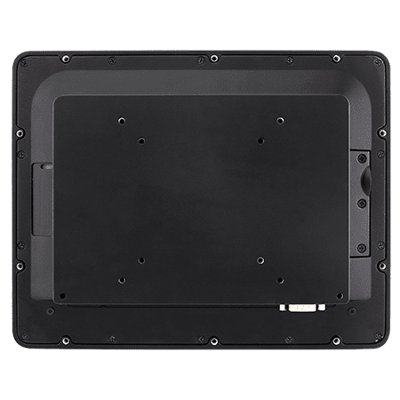

| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Control
| Button | 1 x Power Button (Optional) |
