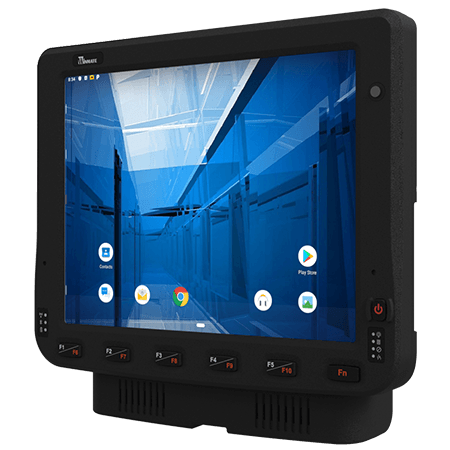

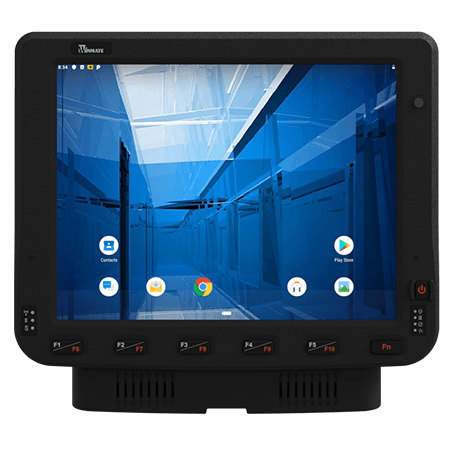

- 10.4" Android Vehicle Mounted Computer with Qualcomm® 6490
- New Design — rugged vehicle-mounted computer for logistics, fleet, warehouse and industrial mobile operations
- 10.4" display with 1024 x 768 resolution and 400 nits (Default), 800 (Optional) brightness
- Qualcomm® 6490, Octa-Core, up to 2.7GHz
- 10.4" 1024 x 768 Panel with PCAP touchscreen
- Field replaceable front panel to reduce service costs
- IP65 waterproof and dustproof
- Wide range -30°C to 60°C operating temperature
- CE, FCC certified
Display
| Size | 10.4 inches |
|---|---|
| Resolution | 1024 x 768 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 400 nits (Default) 800 (Optional) |
| Contrast Ratio | 1200:1 |
| View Angles | 88, 88, 88, 88 |
| Touch Mode | Support Hand, Stylus, Glove Mode |
System Specification
| Processor | Qualcomm® 6490, Octa-Core, up to 2.7GHz |
|---|---|
| Memory | 8GB |
| Storage | 128GB |
| Operating System | Android 15.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional) 5G (Optional) |
| GNSS | GPS/GLONASS |
| Sensors | G-Sensor, Temp. Sensor |
Camera
| Front Camera | 2MP Camera |
|---|
Mechanical
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
|---|---|
| Docking Housing | Aluminum Alloy Housing |
| Weight | Tablet 1.6 kg (3.53 lbs) Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM mount/ VESA mount |
| Cooling System | Fanless Design |

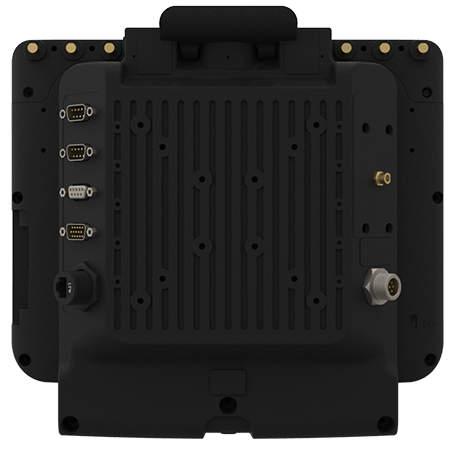

IO Ports
| USB Port | 1 x USB 3.0 Type C (Tablet) 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
|---|---|
| Serial Port | 2 x COM Port(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Audio | 2 x Speaker(Docking) 1 x CANBus or 1 x Audio(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Indicator | 5 x LED Indicator, (WLAN, BT, UPS battery, Screen Blanking, Heater) |
| Antenna connector | SMA Connector(female) for external antenna WLAN (Tablet) SMA Connector(female) for external antenna GPS (Docking) SMA Connector(female) for external WWAN/5G antenna (Optional) |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
|---|---|
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2
Enhanced ESD to ±8kV Direct & ±12kV Air |
Certification
| Certification | CE, FCC |
|---|
Control
| Button | 1 x Power Button 6 x Function Button, (Programmable Function Key Configured by Winset) |
|---|
Power
| Battery | 7.6V UPS Battery (2S1P) Minimum 30 minutes |
|---|---|
| Power Rating | Docking: 10V-60V with ignition control
Tablet: 12V DC In |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
|---|
Accessory
| Accessory | 5M Power Cable with Fuse Kit, 0.3M USB Cable, 0.15M Power Converter Cable, DC Jack Power Cable, 84W Adapter with power cable, Cable Clamp Kit, WLAN Antenna x 2, Quick Start Guide, External Antenna Fixing Bracket, Dock + Latch Locking Key, Stylus Kit + Screw |
|---|---|
| Optional Accessory | 1.8M RS232 Cable, 0.3M Audio Cable, 1.8M CAN BUS Cable, 1.8M CAN BUS Open Wire Cable, 2M IP65 LAN Cable, GPS & LTE 2M Combo Antenna(VM240) GPS & LTE 5M Combo Antenna (VM9C) Magnetic Combo Antenna (VM10S) WWAN Antenna, USB-C to HDMI Adapter |
