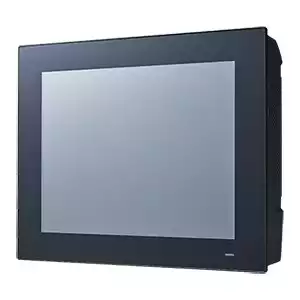

R15IB7T-PMC3-15 Panel Mount Panel PC with Intel Bay Trail Platform
Features
LCD PaneláSpecification
| Size | 15″ |
| ActiveáDisplayáArea | 304.1 (H) x 228.1 (V) |
| PixeláPitch | 0.297 (H) x 0.297 (V) |
| Resolution | 1024×768 |
| Contrast Ratio | 2000:1 (typ.) |
| DisplayáColor | 16.2M (6bits+FRC) |
| Panel Brightness | 250 (typ.) |
| Viewing Angle | -88~88 (H); -88~88 (V) |
| RecommendáResolution | 1024×768@60Hz, 75Hz |
| PoweráInput | AC 100~240 V, Universal,€10% |
| PoweráConsumption | 38W (typ.) |
| PoweráManagement | VESA DPMS Compliant |
| PlugáPlay | VESA DDC 1/2B |
| Touch Sensor Type | Resistive |
SystemáSpecification
| FormFactor | Mini-ITX |
| Processor | Intel® Celeron Bay Trial-M N2930 1.83GHz Processors |
| Chipset | Intel Atom SoC Integrated |
| Memory | SO-DIMM DDR3L 1600, max. 8GB |
| BIOS | AMI 16Mbit |
| LCDáSupport | Dual Channel 24-bit LVDS |
| Ethernet | Intel® I210-AT GbE |
| Audio | Realtek HD Audio Codec |
| SATA | 1 x SATAII |
| I/OáChipset | Fintek F81865 |
| Serial | 2 x RS232, 1 x RS232/422/485 |
| USB | 1 x USB 3.0, 3 x USB 2.0 |
| KBá/áMouseáConnector | 2 x PS/2 |
| DVDáOptional | No |
| Storage | 2.5 inch HDD |
| FDDáOptional | No |
| OS | Windows 10 IoT Enterprise / Windows Embedded 8 / Windows Embedded 7 |
| PoweráAdapter | DC IN 12V |
| Temperature | Operating : 0 deg.C to 45 deg.C |
| Humidity | Operating : 30% to 90% non condensing |
| Shock | Operating:15G, 11ms duration |
| Vibration | Operating: 5 Hz ~ 500 Hz/ 1 Grms/ 3 Axis Packing:: 5 Hz ~ 500 Hz/ 2.16 Grms/ 3 Axis |
| Net Weight (kg) | 0.0 |
| Gross Weight(kg) | 0.0 |
| Security Support | Trusted Platform Module (TPM 1.2) |
