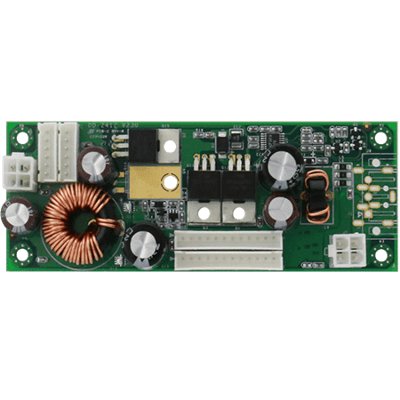

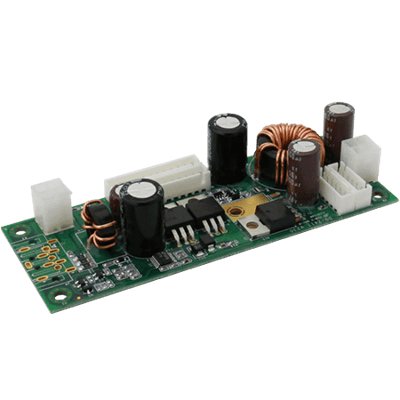

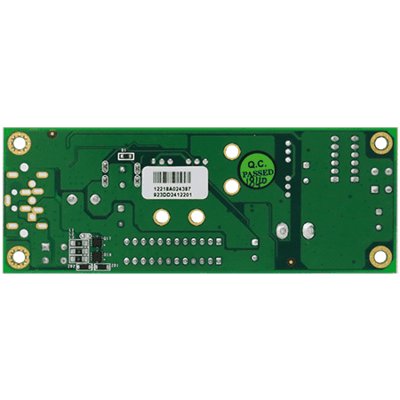

24V to 12V 100W DC/DC Converter Module
Vlastnosti:
- High efficiency DC-DC Converter Module
- Low inrush current
- Output over-current protection
- Wide range voltage input
System Specification
| Input Voltage | 24V to 12V DC |
| Load Range | 12V 10A |
| Power Consumption | 100W |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 9~36V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection OVP protection |
Certification
| Certification | CE, FCC |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
Mechanical
| Dimension | 120 x 45 x 25.6 mm |
