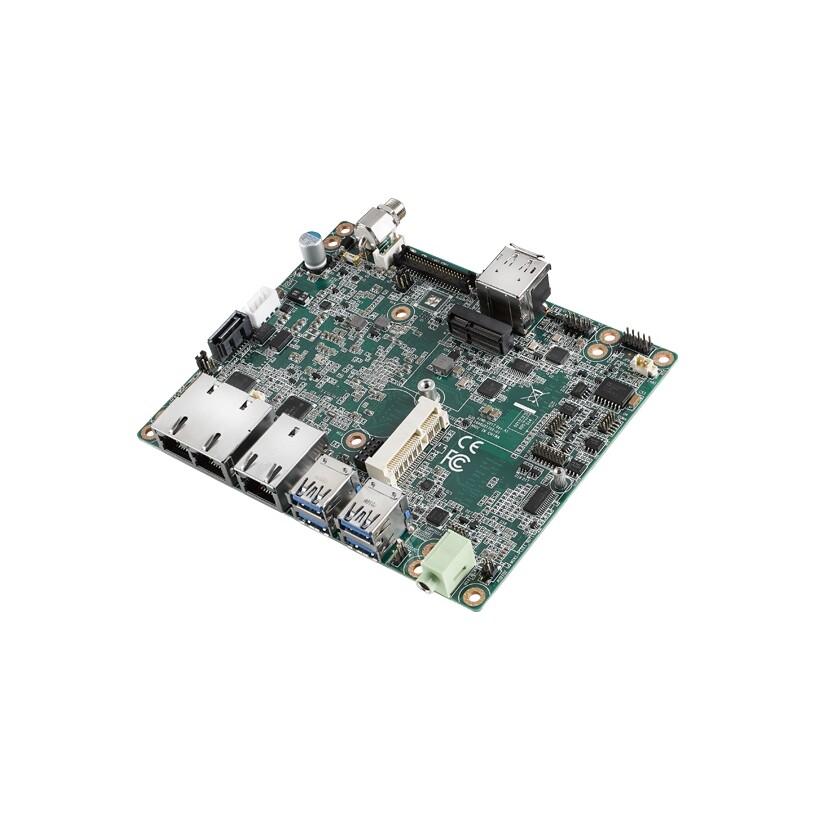

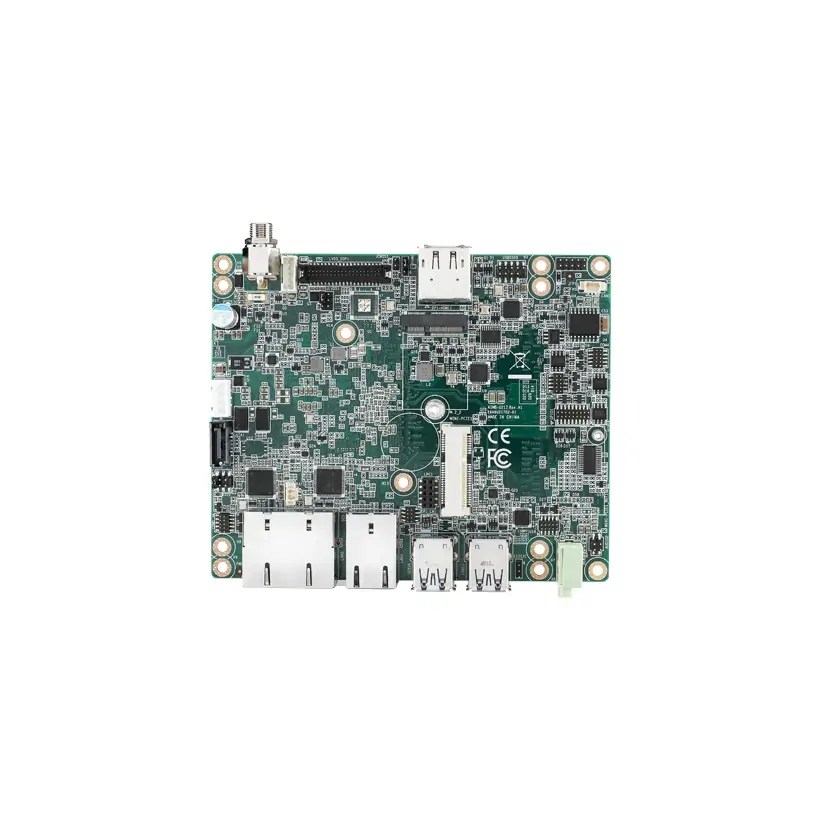

Intel® Atom™ E3950/E3940 QC 1.6 GHz UTX Industrial Motherboard with HDMI/eDP (LVDS)/DP , 4 COMs and 3 LANs
Supports Intel® Atom™ Qual core E3950/E3940 1.6 GHz processor
Single 204-pin SO-DIMM up to 8 GB DDR3L 1866 MHz SDRAM
Supports HDMI/DP++, eDP (co-lay dual-channel 48-bit LVDS)
Supports 1 F/S Mini-PCIE expansion slot (co-lay 3rd LAN), M.2 E-Key slot, 4 COMs ( 2 RS-232, RS-232 or 422 or 485), 4 USB 3.0, 2 USB 2.0, 3 LANs.
Supports CANBus, GPIO 16bit, TPM
Supports eMMC 32GB on board
Supports wide DC in 12V to 24V
Supports wide temperature and cooler/fanless solution
Support SUSI, WISE-DeviceOn and Edge AI Suite.
