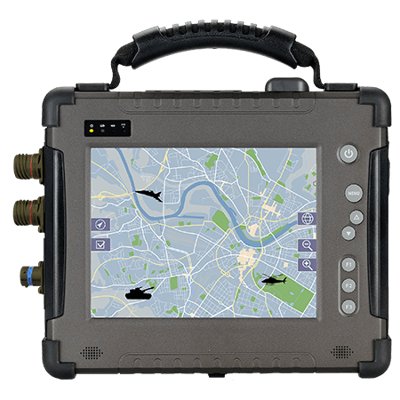

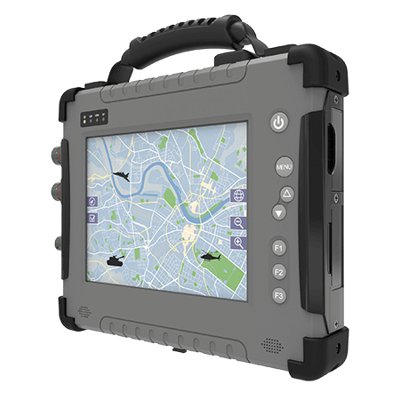

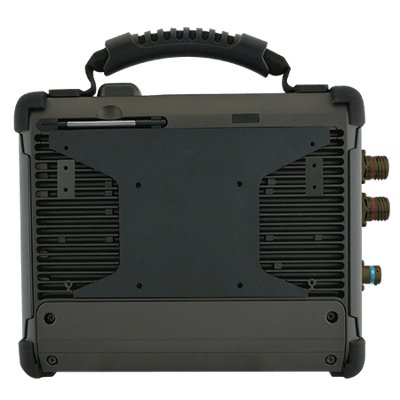

8.4" Intel® Pentium® N4200 Defence Ultra Rugged Tablet
Vlastnosti:
- Intel® Pentium® N4200 Apollo Lake Processor, 8.4inch Defence rugged tablet
- 8.4" 800 x 600 Resolution Transflective TFT-LCD Panel
- With daylight-readable screen 600 nits optical bonding for clarity increasing and readability enhancing
- Ecological seals protect ports as well as connectors from moisture and dust

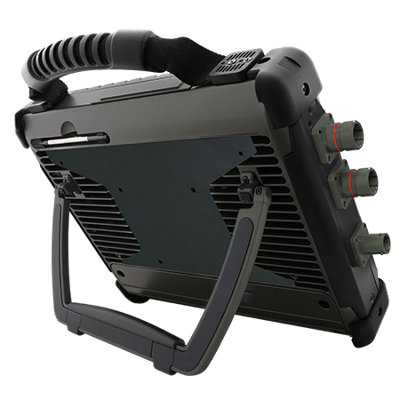

- Adjustable Kickstand that is Convertible to a handle
- Magnesium Alloy Housing with All-Around Elastomeric Rubber
- MIL-STD-38999 connector for LAN/USB2.0, RS232/RS422 and DC Power Input
Display
| Resolution | 800×600 |
| Size | 8.4 inches |
| Contrast Ratio | 600:1 |
| Panel Brightness | 600 nits |
| View Angles | 75,75,60,70 |
| Touch / Glass | Resistive Touch Screen |
System Specification
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | SO-DIMM, 4GB DDR3L 1866 MHz SO-DIMM, 8GB DDR3L 1866 MHz (Optional) |
| Storage | 64GB M.2 SSD 128GB M.2 SSD (Optional) 256GB M.2 SSD (Optional) 512GB M.2 SSD (Optional) |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| WLAN | 802.11 a/b/g/n/ac |
| BT | Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS GLONASS, Galileo, BeiDou (Optional) |
Mechanical
| Dimension | 266 x 222 x 50 mm |
| Weight | 2.4 kg |
| Enclosure | Aluminum Magnesium Alloy Housing with Protective Rubber |
| Cooling System | Fanless Design |
| Docking Housing | nan |
Power
| Battery | 11.1V, 5200mAh Lithium-Ion Battery (6cells) |
| Battery Operating Time | 8 Hours |
| Power Rating | 9-36V DC in (MIL-DTL-38999/1 connector) |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP54 |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power, 1 x Menu, 3 x Function Key, 2 x Brightness Control Key |
Accessory
| Accessory | Cordon d’alimentation et adapteur Batterie standard Guide de démarrage rapide Manuel papier + CD Stylet Câble alimentation + Ethernet MILSTD38999 Câble RS232/RS422/RS852 MILSTD38999 |
| Optional Accessory | Station d’accueil multifonctions Kit d’adaptation pour véhicule Chargeur voiture Lanière pour main Lanière épaule Sacoche |
IO Ports
| USB Port | 2 x USB 3.0, 1 x USB 2.0(MIL-STD-38999 connector) |
| Serial Port | 1 x RS232/RS422 Serial COM Port(MIL-STD-38999 connector) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Audio | 2 x 1 Watt Speaker |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
Camera
| Front Camera | 2MP Front Camera (Optional) |
| Rear Camera | 5MP Rear Camera with auto-focus (Optional) |
