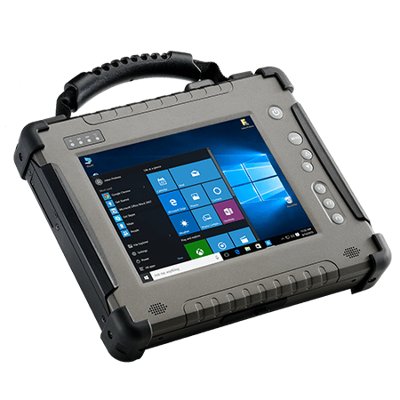

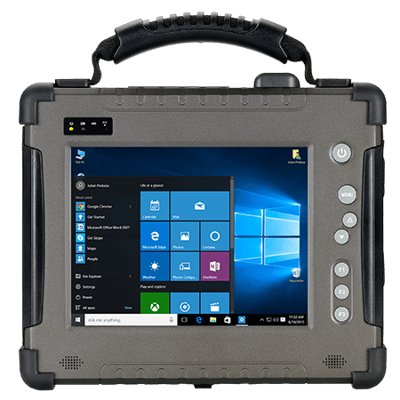

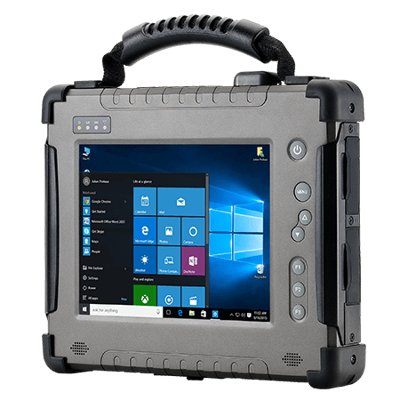

8.4" Intel® Pentium® N4200 Industrial Rugged Tablet
Vlastnosti:
- Intel® Pentium® N4200 Apollo Lake processor, industrial rugged tablet
- Alu-Mg alloy housing with protective rubber
- MIL-810G Shock, Vibration and Drop Std.
- Trusted platform module (TPM) V2.0
- Built-in wireless, BT, GPS
- Optional 4G LTE

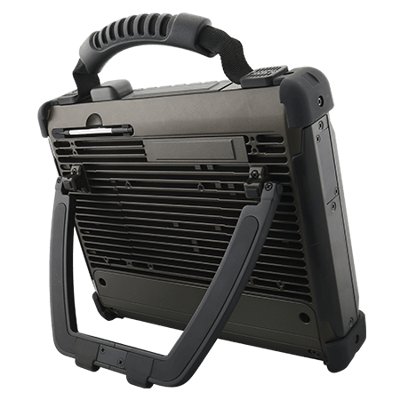

- Adjustable kickstand handle (Optional)
Display
| Resolution | 800×600 |
| Size | 8.4 inches |
| Contrast Ratio | 600:1 |
| Panel Brightness | 600.0 nits |
| View Angles | 75,75,60,70 |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Wi-Fi Support |
| BT | BT Support |
| WWAN | 4G/ LTE or 3G (Optional) |
| GNSS | Supports GPS GLONASS, Galileo, BeiDou) (Optional) |
Mechanical
| Dimension | 266 x 224 x 50.4 mm |
| Weight | 2.4 kg |

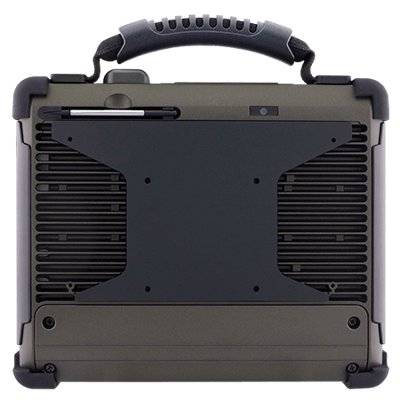

| Mounting | VESA Mount |
| Enclosure | Magnesium Alloy |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) (Battery mode) -20°C to 60°C (4°F to 158°F) (AC mode)" |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP54 |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card Slot |
| SIM Card Slot | 1 x Micro SIM card Slot |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) 2 x Speaker |
| LAN | 1 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for HDD 1 x LED Indicator for Battery status 1 x LED Indicator for Wifi |
Control
| Button | 1 x Power button 1 x Menu button 1 x Up button 1 x Down button 3 x Function key button |
Accessory
| Accessory | 100~240V AC to 19V DC 65W Adapter Power Cord 11.1V / 5200mAh Battery Quick Start Guide Stylus |
| Optional Accessory | Adjustable Kickstand (Optional) Multi-functional Desktop Docking station (Optional) Vehicle Mounting Charger Kit (Optional) Car Power Charger (Optional) Hand Strap (Optional) Shoulder Strap (Optional) Soft Shell Case (Optional) Carry Bag (Optional) |
Barcode Scanner
| Barcode Scanner | 2D Barcode Reader (Optional) |
Camera
| Front Camera | 2MP Camera (Optional) |
| Rear Camera | 5MP Autofocus Camera (Optional) |
