8" Windows Industrial Rugged Tablet with Intel® Pentium® N4200
Vlastnosti:
- Intel® Pentium® N4200 Apollo Lake processor, Windows tablets
- 8'' daylight readable panel with direct optical bonding
- Default D-sub for vehicle gateway connection

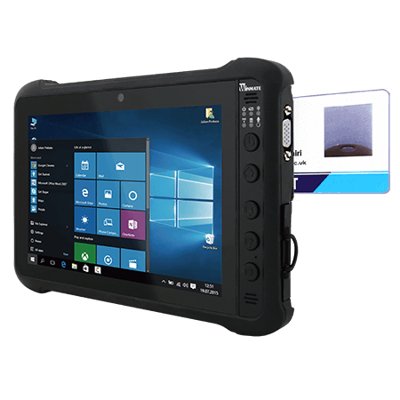

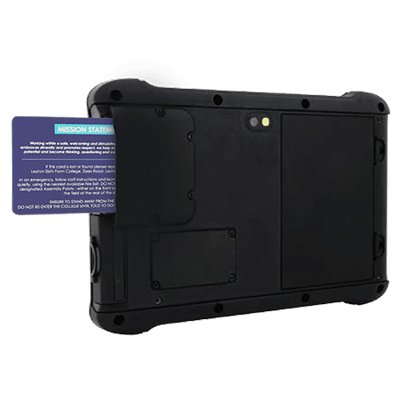

- Built-in Smart Card Reader, Windows 10 tablets
- Optional Barcode Reader
Display
| Resolution | 1280×800 |
| Size | 8 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 510 nits |
| View Angles | 85,85,85,85 |
| Type | Projected Capacitive Multi Touch |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB LPDDR4 8GB LPDDR4 (Optional) |
| Storage | 128 GB SSD Additional storage available with micro SDXC card slot 256 GB SSD (Optional) 512 GB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Smart Card Reader | Built-in Smart Card Reader, Comply with ISO7816-1.2.3 T=1 and T=Ø protocol |
Camera
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
Mechanical
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless design |
IO Ports
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Audio | 1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker |
| Expansion Port | 1 x 15-pin D-sub connector for Power Input, USB 2.0,Audio Out, and Tx/ Rx |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810G Method 516.6, 5 ft |
Certification
| Certification | CE, FCC, E-Mark |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Control
| Button | 1 x Power,1 x menu, 3 x Programmable Function Keys |
Power
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | 8 Hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
| Accessory | Adapter and Power Cord Standard Battery Pack |
| Optional Accessory | Desk Dock (Optional) Vehicle Dock (Optional) Vehicle Gateway (Optional) Vehicle Cradle (Optional) Battery Charger (Optional) Vehicle Charger (Optional) Hand Strap (Optional) Capacitive Stylus (Optional) |
Barcode Scanner
| Barcode Scanner | 1D/2D barcode reader (Optional) |
