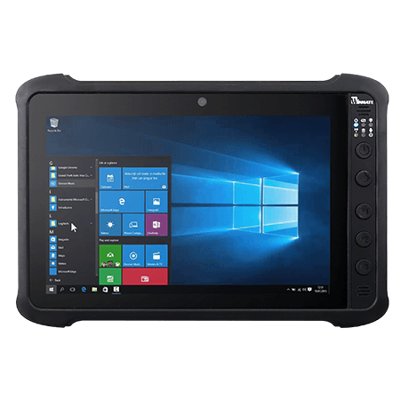

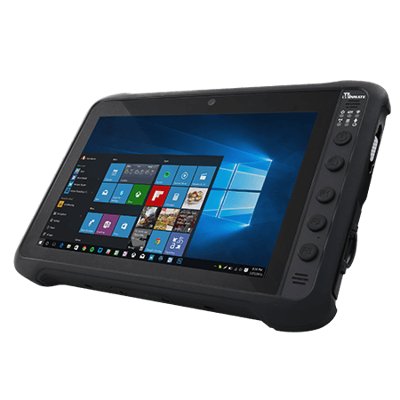

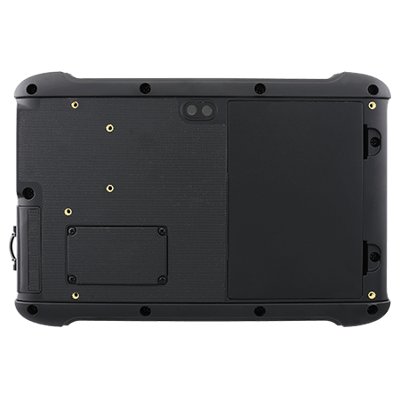

8" Windows Rugged Tablet with Intel® Celeron® N6211
Vlastnosti:
- Intel Celeron N6211 Elkart Lake Processor rugged tablet PC
- 8” 1280x 800 IPS LED panel with direct optical bonding
- Optional expansion port DB15 connector
- Sunlight readable with antiglare solution
- Projected capacitive (PCAP) multitouch
- USB 3.0 type A, USB 3.0 type C connectors
- IP65 waterproof and dustproof
Display
| Type | Projected Capacitive Multi Touch |
| Bonding | Optical Bonding for Sunlight Viewability |
| Resolution | 1280×800 |
| Size | 8.0 inches |
| Contrast Ratio | 1500:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 80,80,80,80 |
System Specification
| Processor | Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional) |
| Memory | 4GB LPDDR4 8GB LPDDR4 (Optional) |
| Storage | 128GB SSD Additional storage available with micro SDXC card slot 256GB SSD (Optional) 512GB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise SAC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | Mutually Exclusive with Barcode Reader HF RFID Reader 13.56 MHz (Optional) LF RFID Reader 125 KHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Smart Card Reader | Smart Card Reader Comply with ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
Camera
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
Mechanical
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless design |
IO Ports
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Audio | 1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker |
| Expansion Port | 1 x 15pin D-sub connector |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810H Method 516.8, 5 ft |
Certification
| Certification | CE, FCC |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Control
| Button | 1 x Power,1 x menu, 3 x Programmable Function Keys |
Power
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
| Accessory | Adapter and Power Cord Standard Battery Pack |
| Optional Accessory | Desk Dock (Optional) Vehicle Dock (Optional) USB-A Cable (Optional) Battery Charger (Optional) Vehicle Charger (Optional) Hand Strap (Optional) Vehicle Cradle (Optional) LAN Cable (Optional) Capacitive Stylus (Optional) |
Barcode Scanner
| Barcode Scanner | 1D/2D barcode reader (Optional) |
