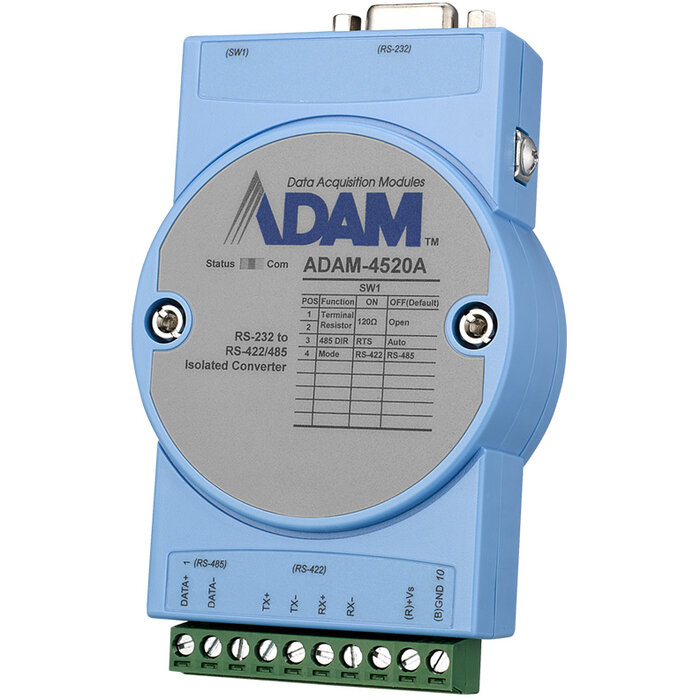

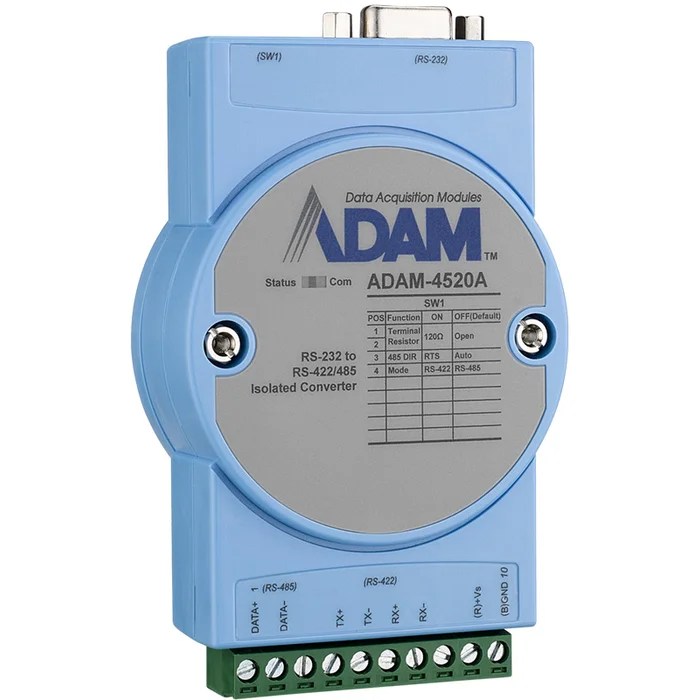

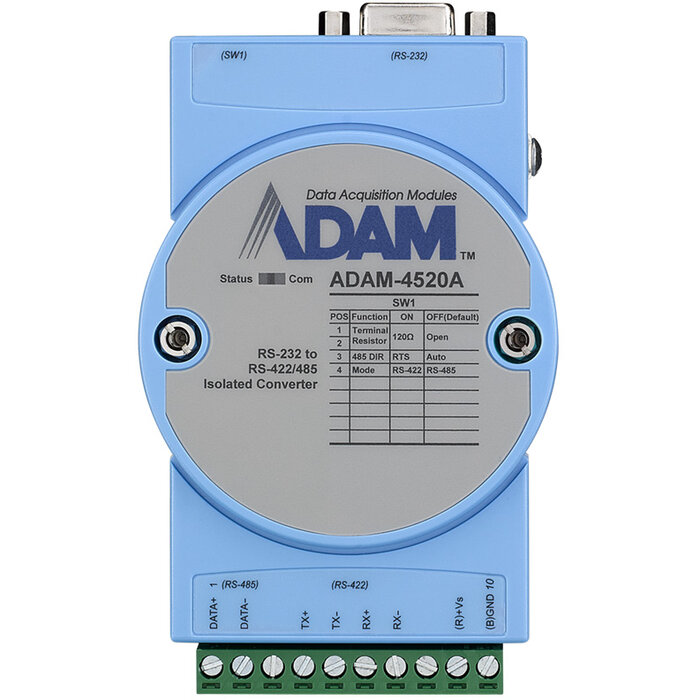

Robust RS-232 to RS-422/485 Isolated Converter
The ADAM-4520A has an enhanced ruggedized design with wide temperature operation, and wide-range power inputs. It also provides up to 3,000 VDC isolation protection. With proven industrial-grade features, ADAM-4520A ensures reliable and stable operation in most harsh environments.
Vlastnosti:
- Convert RS-232 to RS-422/485 signals
- Extend RS-232 data signals up to 1.2 km
- Data rate: 115.2 kbps
- 3000 VDC Isolation
- Auto-detection on baud rate / data format
- DIP switch for RS-422 or RS-485 selection
- Build-in 120 ohm termination resistors
- Power requirement +10 to +48 VDC
- Operating Temperature -40 ~ 85° C (-40 ~ 185° F)
