• Industrial Switch with 4 10/100 Mbps Ethernet Port & 1 Single-mode Fiber Port
• Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
• Provides 1 x 100 Mbps multi/single-mode fiber port with SC connector
• Supports full/half duplex flow control
• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Embedded with a switch controller, supports auto-negotiation
• Embedded with the memory buffer, supports store-and-forward transmission
• Support +10 ~ 30 VDC voltage
• Provides surge protection 3000 VDC for power line
• Provides flexible mountings: DIN-rail, panel, piggyback
• Supports operating temperature: -10 ~ 65°C

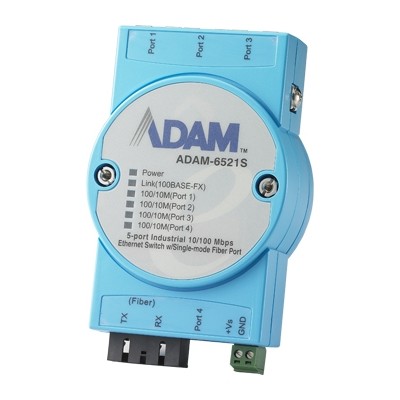

ADAM-652S1 is an industrial-grade Ethernet switch and single-mode fiber converter. It is designed to help extend an Ethernet network up to 15 km through areas with electrical noise interference. ADAM-6521 has one fiber optic and four RJ-45 ports. With single-mode fiber transmission, you can prevent noise interference and achieve transmission distances up to 15 km. Thus, ADAM-6521S is especially suitable for industrial environments with long-distance Ethernet networking needs, e.g. warehouses, transportation, environmental monitoring, and many more.
