12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel® Core™ i3*/Celeron® Processer

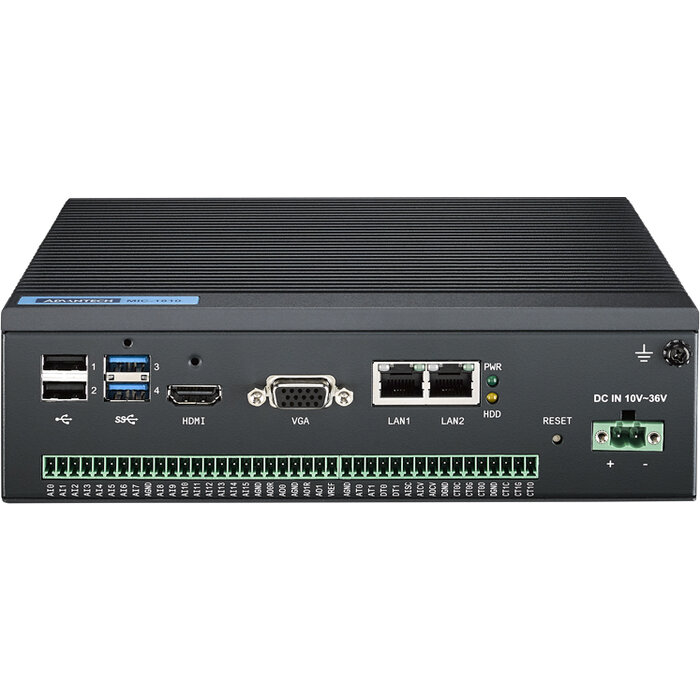

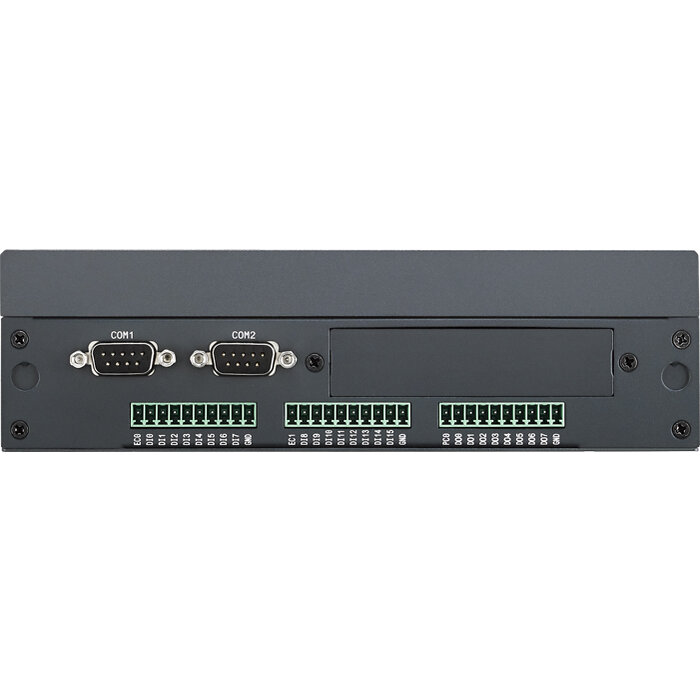

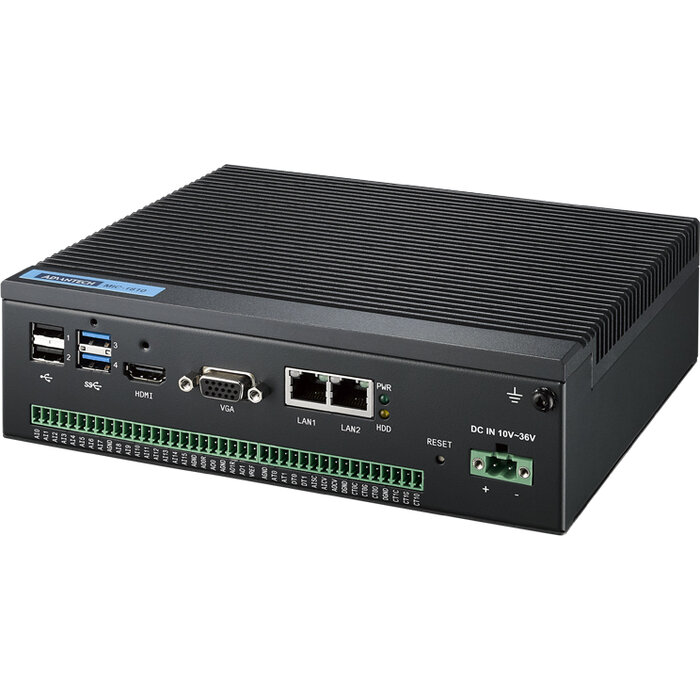

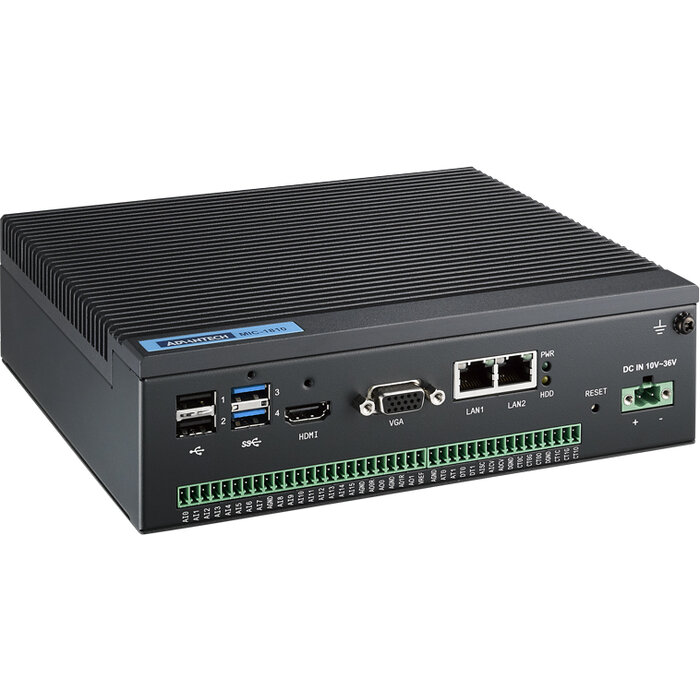

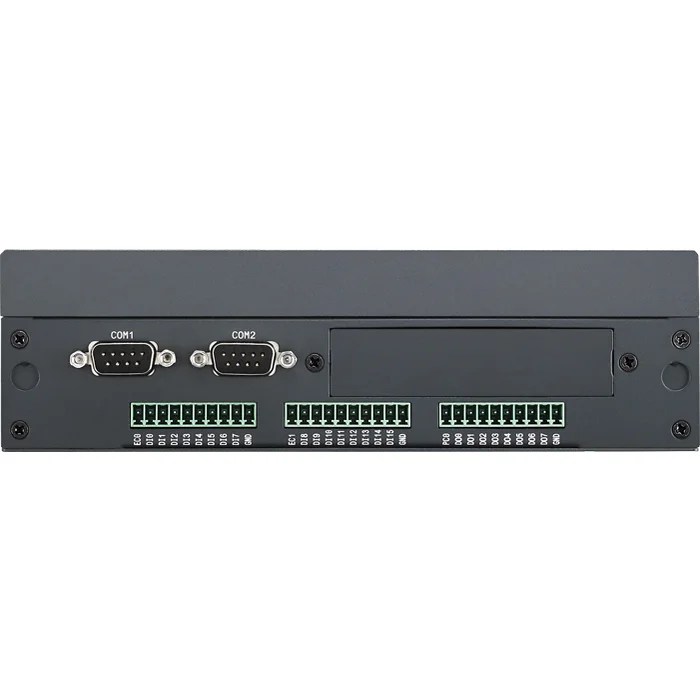

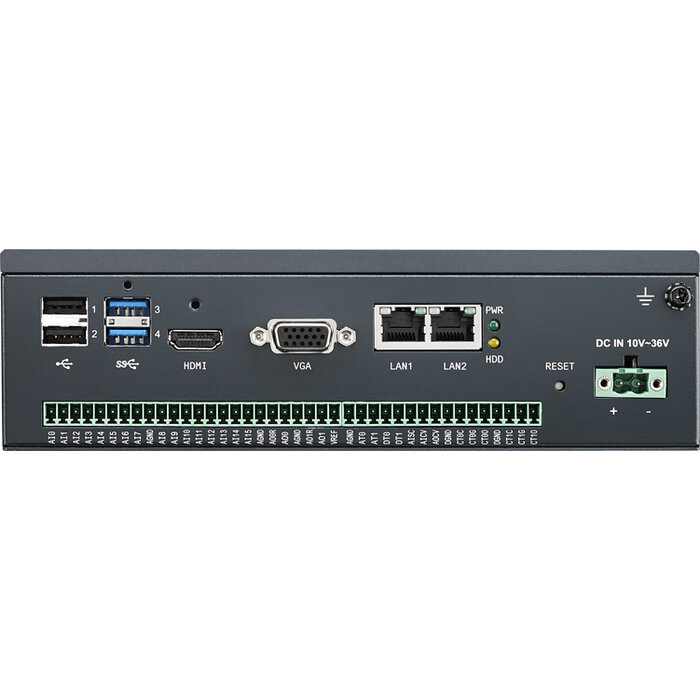

MIC-1810 is a stand-alone automation controller featuring an integrated DAQ module and signal conditioning to provide digital I/O, analog I/O, and counter functions.
Vlastnosti:
- 16x analog inputs, up to 800 kS/s, 12-bit resolution
- 2x analog outputs, up to 500 kS/s, 12-bit resolution
- Support for digital trigger and analog trigger
- 16x Isolated digital input, 8x isolated digital output
- 2x 32-bit programmable counter/timers
- Onboard FIFO memory (4,096 samples)
- 2x RS-232/422/485 ports
- 2x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported
