• ARM 32-bit RISC CPU• 10/100Base-T auto-negotiation high-speed communication port• Supports Modbus/TCP for easy integration• Supports UDP event handling function• Up to 100 m communication distance w/o repeater• Allows remote configuration via Ethernet• Allows concurrent access for 8 host PCs• 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control• 1500 VDC isolation for Ethernet communication• Built-in watchdog timer for system auto-reset• Windows utility – I/O modules configuration and calibration – Network auto searching – Data stream setting – Current status monitoring and alarm trigger• Provides C and .NET class library to develop applications

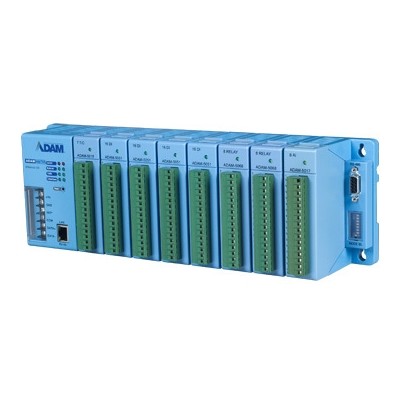

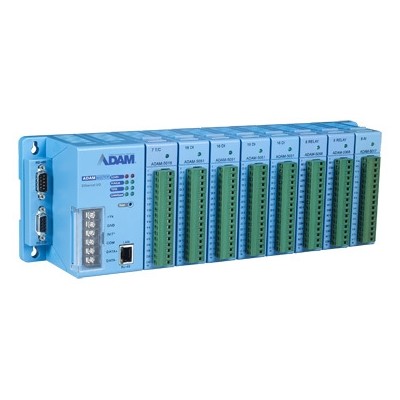

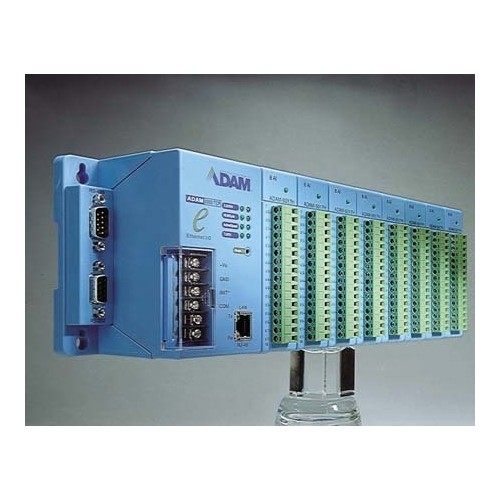

The ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, the ADAM-5000L/TCP and ADAM-5000/TCP can cover a communication distance up to 100 m. This allows remote configuration via Ethernet and eight PCs can simultaneously access the… More
