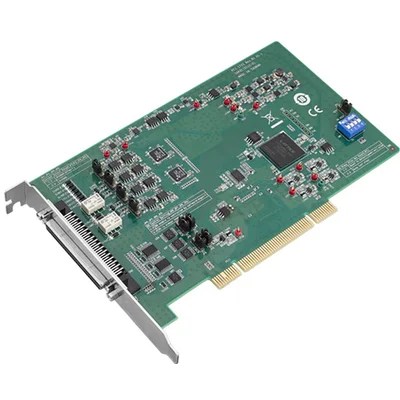

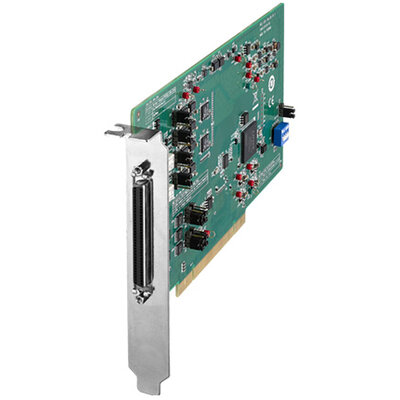

12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O
PCI-1721 is an advanced high-speed analog output card for the PCI bus, and each of analog output channels are equipped with a 12-bit, double-buffered DAC. It features many powerful and unique functions, like a waveform output function with 10 MHz maximum update rate, auto-calibration and a BoardID switch. PCI-1721 is an ideal solution for industrial applications where high-speed continuous analog output or real-time waveform output functions are required.
Vlastnosti:
- 10 MHz maximum digital update rate
- Synchronized output function
- 16-ch DI/O and one 10 MHz 16-bit resolution counter
- Four analog output channels with 1,024 samples FIFO buffer
- A 12-bit DAC is equipped for each of analog output channels
- Real-time waveform output function with internal/external pacer
- Flexible output types and range settings
- Keeps the output settings and values after system hot reset
- Auto calibration function
- BoardID™ switch
