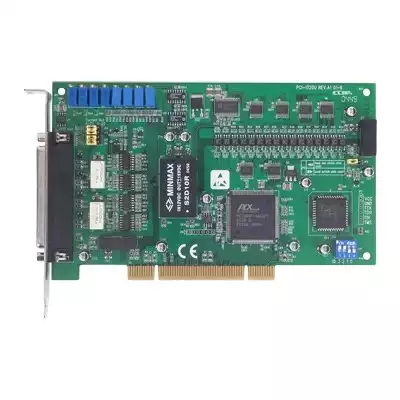

250 kS/s, 16-bit, Simultaneous 8-ch Universal PCI Multifunction Card
PCI-1706U is an advanced high-performance multifunction card based on the Universal PCI Bus. With a large FIFO of 8K Sample, the maximum sampling rate of PCI-1706U is up to 250 kS/s with 8 A/D converters simultaneously sampling on each channel. If more than 8 analog input channels are required, multiple cards can be synchronized through the Device-to-Device Bus to support more AI channels simultaneously sampling. The PCI-1706U has two 12-bit D/A output channels, 16 digital input/output channels, and two 32-bit Time/counter channels so that it can provide specific functions for different application requirements.
Vlastnosti:
- 8 differential analog inputs
- 8 A/D converters simultaneously sampling
- 16-bit A/D converter, with up to 250kHz sampling rate for each channel
- Programmable gain
- Onboard FIFO memory up to 8K Sample
- Multiple A/D triggering modes
- Programmable pacer/counter
- BoardID(TM) switch
- Universal PCI Bus (supports 3.3V or 5V PCI bus signals)
