• 4-ch Analog Output Module with Modbus
• 12-bit resolution
• Software configurable for mA or V output in individual channels
• 4 digital inputs for latch output
• 3000 VDC D/A to Logic isolation
• Programmable output slope: 0.125 – 128.0 mA/sec. 0.0625 – 64 V/sec.

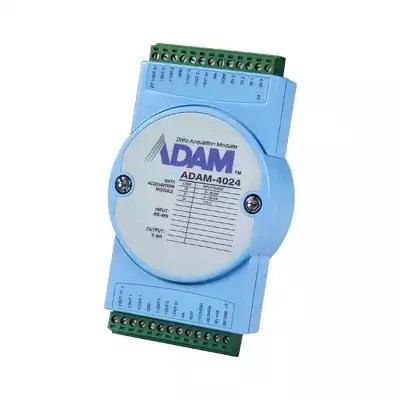

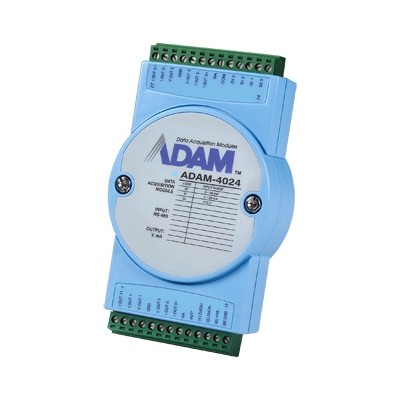

ADAM-4024 provides 4 universal type output channels. Moreover, it is designed with 4 Digital inputs for integrating applications, such as emergency latch outputs or users default triggers. It uses optical isolators to prevent ground loop effects and limits damages from power surges. You can specify slew rates and startup currents.
