• 4-slot Distributed DA&C System for Ethernet
• ARM 32-bit RISC CPU
• 10/100Base-T auto-negotiation high-speed communication port
• Supports Modbus/TCP for easy integration
• Supports UDP event handling function
• Up to 100 m communication distance w/o repeater
• Allows remote configuration via Ethernet
• Allows concurrent access for 8 host PCs
• 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control
• 1500 VDC isolation for Ethernet communication
• Built-in watchdog timer for system auto-reset
• Windows utility
• Provides .NET Class LIB to develop applications

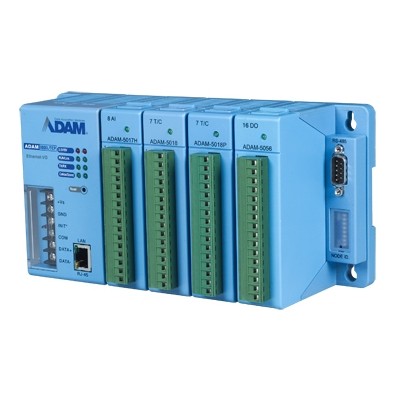

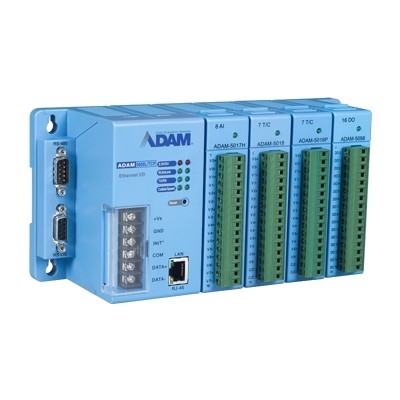

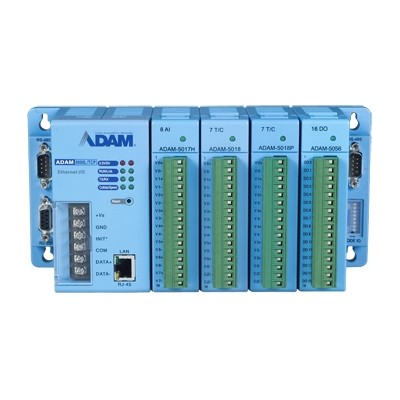

ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, ADAM-5000L/TCP and ADAM-5000/TCP can cover a communication distance up to 100 m. This allows remote configuration via Ethernet and eight PCs can simultaneously access the data. The ADAM-5000L/TCP and ADAM-5000/TCP are the solutions for easy configuration and efficient management. It is an ideal and cost-effective solution for eAutomation architecture.
