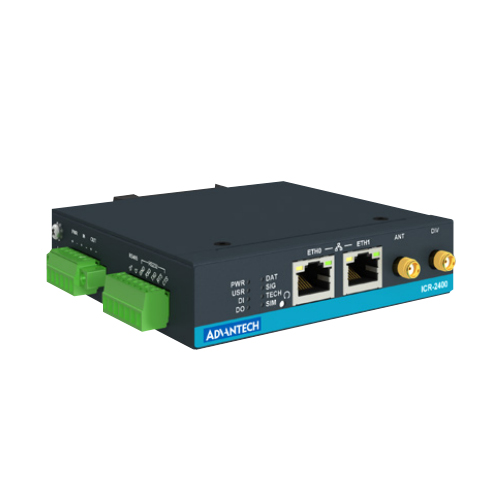

ICR-2436
Industrial cellular router ICR-2436 is designed for communication in both public and private LTE networks (frequency spectrum 3500-3700 MHz (B42, B43, B48-CBRS). PrivateLTE provides complete control and guaranteed coverage for companies operating mission critical industrial applications. The high speed LTE connectivity is ideal for enterpriseapplications such as smart factory and smart city focusing on Industry 4.0.The router is equipped with two independently configurable Ethernet ports (LAN or WAN), 1‘Ś serial port RS232, 1‘Ś RS485, and with digital I/O connectivity (1‘Ś DI, 1‘Ś DO).The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of thewireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) withapps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx,and others are supported on the router
Vlastnosti:
- Global LTE coverage with 3G fallback
- Full support for QCI-70 Quality of Service (3GPP Release 12)
- Private LTE frequency bands 42, 43, 48 (CBRS)
- 2‘Ś SIM for redundancy
- 2‘Ś Ethernet 10/100 Mbps
- 1‘Ś RS232, 1‘Ś RS485
- 1‘Ś DI, 1‘Ś DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS and SW customization
